Pipe in pipe – PE-Xa

Description

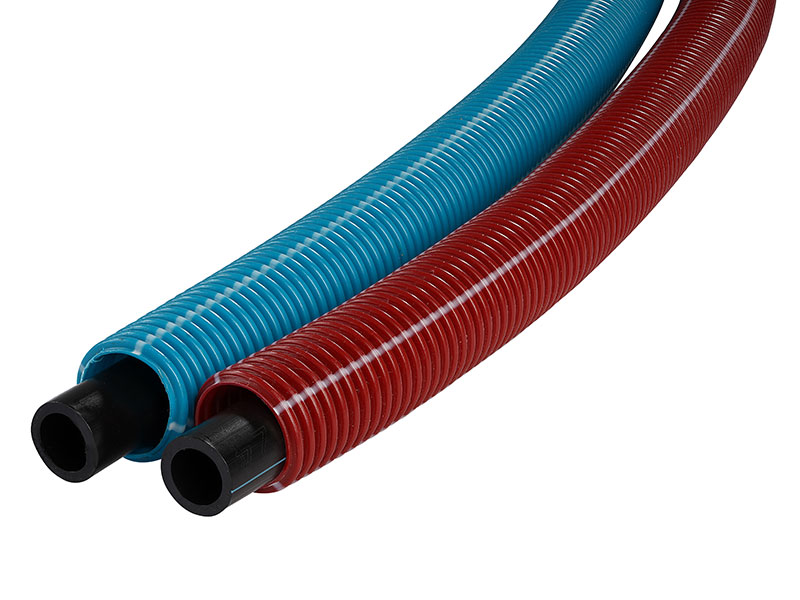

GPP’s polyethylene PE-Xa pipes are crosslinked by a high-pressure peroxide extrusion method, which, together with the PE-Xc manufacturing method, consists of the most stable and optimal crosslinking methods. Together, they enhance the pipe’s flexibility and thermal memory, making it easier to handle. The jacket pipe in which the PE-X pipe is inserted is made of low-density corrugated polyethylene (LDPE), allowing the pipe to withstand rugged job site conditions. The LDPE jacket contains a minimum of 2.5% carbon black for UV protection. When buried, the corrugated shape plays a significant role in the pipe’s resistance to thermal expansion.
pixel
The inner pipe coated or not coated with an oxygen barrier layer
Suitable and approved for drinking water
Fast & easy installation in less than half the time compared with any other system
Very low thermal conductivity
No additional insulation is required

Specifications

The inner pipe coated or not coated with an oxygen barrier layer
Suitable and approved for drinking water
Fast & easy installation in less than half the time compared with any other system
Very low thermal conductivity
No additional insulation is required

Applications

Snow and ice melting
Radiator heating system
Potable water (drinking water)
Hydronic piping
Geothermal

Technical specifications

Pipe diameter: from 10 mm up to 32 mm
Pipe color (corrugated pipe): red, blue, light blue, gray, and black for UV resistance
Pipe color (PE-Xa): natural coated with various colors
Printing: customized brand, logo, and pipe marking
Packaging: film, carboard box, and packaging kits
Pipe length: from 4 meters up to 1000 meters

Commercial Approvals

SII
DVGW
SKZ
AENOR
CSTB
RISE
NSF
GLOBAL MARK
